• Heavy-Duty Bundle Rack – Long

    Heavy-Duty Bundle Rack – Long

    • Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4s not included)
    • Complete with 11" connector tube for butting rails together in a straight line for desired length
    • Rails built with 2.5" square holes spaced 5" apart. A steal plate with identical holes is welded and boxed inside the rail, 1" up from the bottom
    • 2.5" square tube posts and 2.5" square rubber post caps to separate bundles and slab
    • Must have a 12” overhang on each side
    • Heavy-duty powder coated finish
    • NOTE: When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 72” post will be 66.5” above the top of the rail)
  • Bundle Rack – 6,000 lbs.Bundle Rack – 6,000 lbs.
    Hot

    Bundle Rack – 6,000 lbs.

    • CAPACITY: 6,000 lbs. per opening (3,000 lbs. per post evenly distributed)
    • Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4’s not included)
    • Complete with 11” connector tube for butting rails together in a straight line for desired length
    • Rails built with 2” square holes spaced 4” apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1” up from the bottom
    • 2” square tube posts and 2” square rubber post caps to separate bundles and slabs
    • Heavy-duty powder coated finish for storing small fabricated parts and cut-offs , standard size slabs and oversized size slabs
    • Post options available for
  • Universal Storage System – USS-5Universal Storage System – USS-5

    Universal Storage System – USS-5

    • Parts included in package are (2) USS-R, (30) USS-P for a total of 15 openings
    • Outside rails are constructed of extruded aluminum, to provide strong, but lightweight storage solution.
    • Outside rails are designed with slots to hold 2 x 4
    • Outside rails have 1" diameter round holes spaced every 3". A secondary plate with identical holes is located below the top of the rail, 1" from the bottom.
    • Rails are 6" wide x 3" high x 60" long and can butt together for desired length.
    • Posts are 1" diameter steel coated with a galvanized finish.
    • Posts can be removed for easy loading and unloading of product.
  • Secure A-Frame – SAFSecure A-Frame – SAF

    Secure A-Frame – SAF

    • Designed to reduce personal injury due to falling slabs.
    • 1 - upright post with locking arms, 1 - base with safety chains
  • Econo A-Frame – ECOA
    Hot

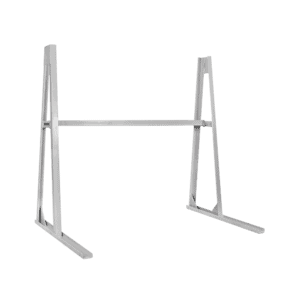

    Econo A-Frame – ECOA

    • Heavy duty powder coated finish.
    • Ships knocked down for lower freight cost.
    • Ledge Length 20.5"
    • 6" spread on top of A.
  • Foldable A-Frame – FAF-60Foldable A-Frame – FAF-60

    Foldable A-Frame – FAF-60

    • Heavy duty powder coated finish.
    • Ships knocked down for lower freight cost.
    • Ledge Length 20.5"
    • 6" spread on top of A.
  • Heavy-Duty Transport Rack – TR4496Heavy-Duty Transport Rack – TR4496
    Hot

    Heavy-Duty Transport Rack – TR4496

    • CAPACITY: 4,000 lbs.
    • Hold downs bars have riveted rubber strips the length of the bar
    • Quick release mounting pins change rack from mobile to stationary (Optional caster kit: (4) 8” roller bearing wheels; Two swivel casters with brakes and two ridged)
    • Fork lift hoops mounted on sides
    • Bottom pads and uprights have riveted rubber strips
    • Hot dip galvanized finish
    • 87.21-degree angle
  • Caster Kit for TR4482 and TR4496Caster Kit for TR4482 and TR4496

    Caster Kit for TR4482 and TR4496

    • 8" diameter roller bearing wheels
    • Rated at 1,000 lb. capacity each
    • Two swivel casters with brakes on one end and two rigid on the other
    • Quick release mounting pins and caster stems change rack from mobile to stationary in seconds
  • Tranpsort Rack – 10,000 Lb Capacity – TR-10Tranpsort Rack – 10,000 Lb Capacity – TR-10
    Hot

    Tranpsort Rack – 10,000 Lb Capacity – TR-10

    • Designed for fabrication and transportation of products to the job site (Please see our shop cart or glass carts for additional storage and transportation needs)
    • 10,000 lb. capacity designed to hold all sizes of slabs. The capacity of the TR-10 is reduced to 8,000 lbs. with the use of the CK-8000 caster kit
    • Optional caster package consists of 8" diameter roller bearing wheels rated at 2,000 lbs. each. Two swivel casters with brakes on one end and two rigid on the other
    • 4 hold down ratchet straps secure load
    • 4 adjustable safety posts provide for safe removal of unstrapped loads that may shift unexpectedly
    • Safety posts are stored at the end of the A-Frame during transport
    • Durable galvanized finish
