• Multi-Purpose Glass Storage System – 4,000 lbs.
    Hot

    Multi-Purpose Glass Storage System – 4,000 lbs.

    • CAPACITY: 4,000 lbs. (2,000 lb. between posts)
    • Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4s not included). Optional Easy Slide (made of low friction material) can be mounted to the 2 x 4’s for extra protection
    • Center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the rack
    • Complete with 11" connector tube for butting rails together in a straight line for desired length
    • Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom
    • 2" square tube posts and 2" square rubber post caps to separate glass
    • Heavy-duty powder coted finish

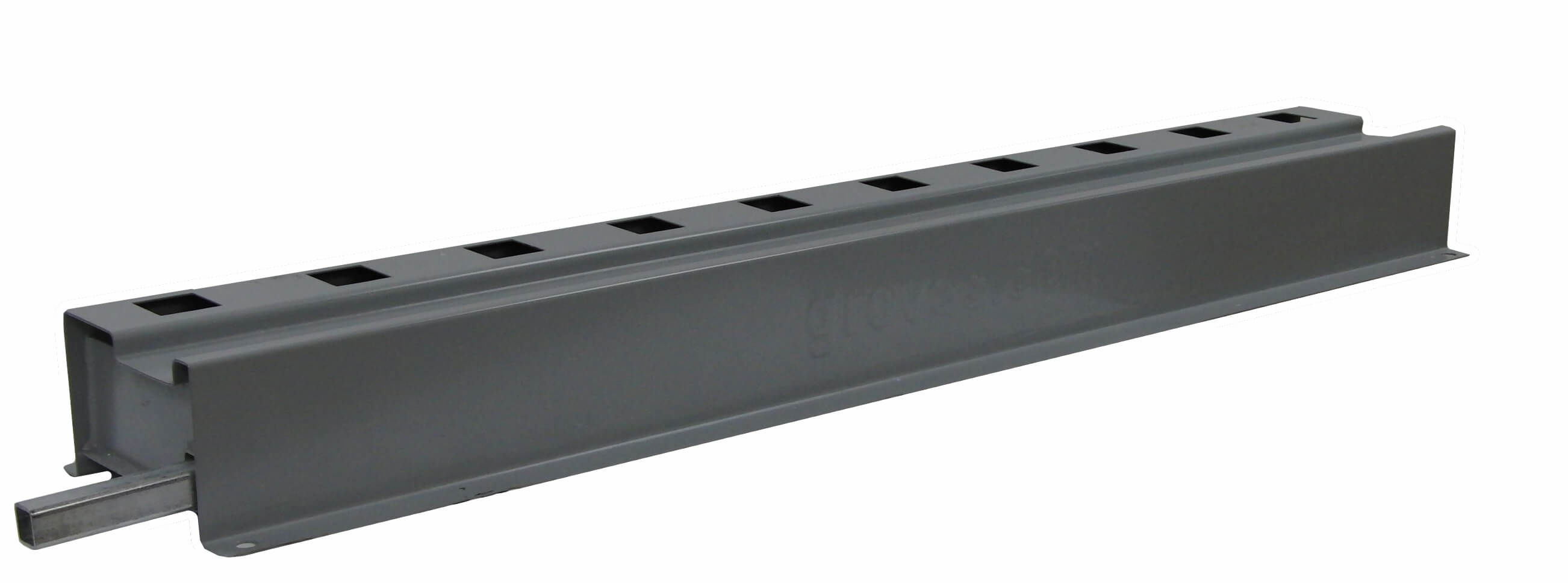

  • Outside Rail – BR-5Outside Rail – BR-5

    Outside Rail – BR-5

    • Patent # 7143901
    • Heavy duty powder coated outside rails are designed with slots to hold 2 x 4
    • 2 x 4
    • Outside rails have 2" square holes spaced 4" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
    • Note: When assembled the overall usable height of the post is 5.5" less than listed.Example: A 60" post will be 54.5" above the top of the outside rail.
    • Rails shipped with 11" connector tube for butting rails together in a straight line.

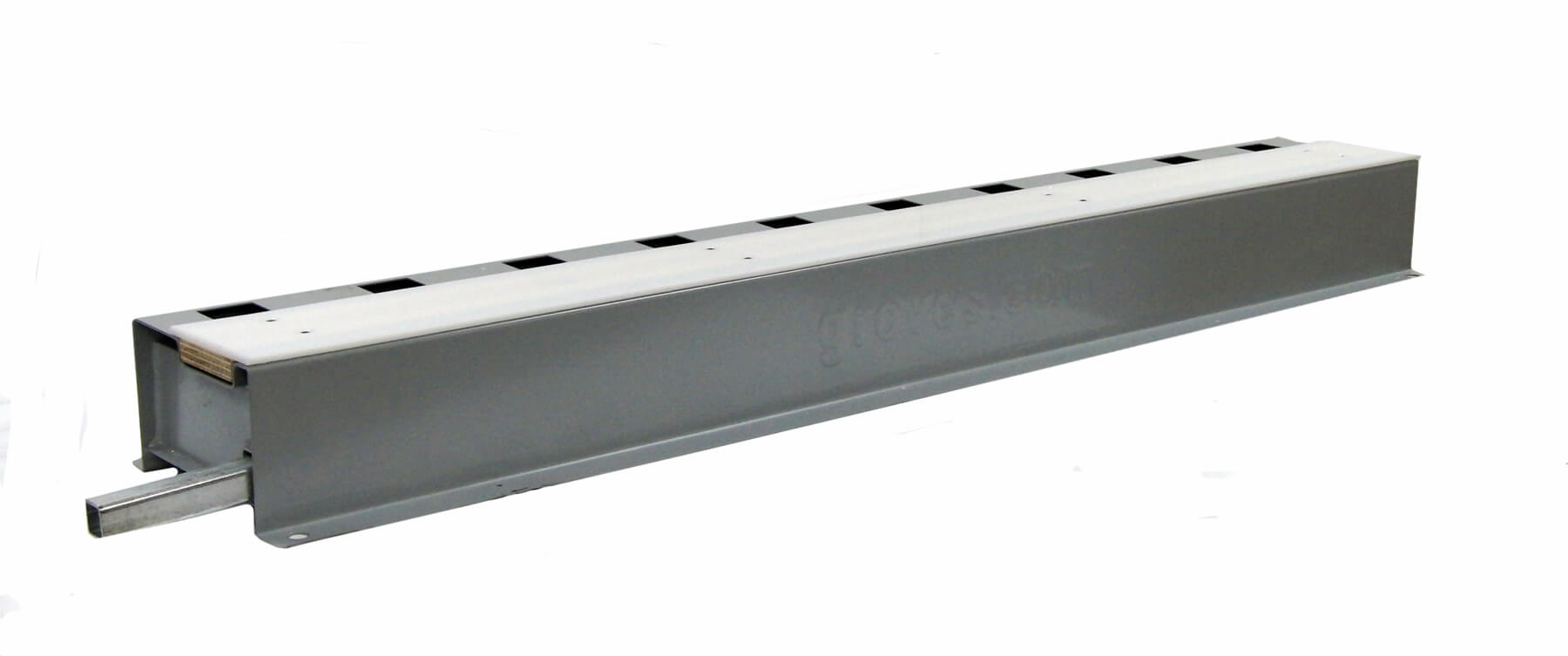

  • Outside Rail with optional Easy Slide – BR-5ESOutside Rail with optional Easy Slide – BR-5ES

    Outside Rail with optional Easy Slide – BR-5ES

    • Patent # 7143901
    • Store loose lites, insulated glass, tempered glass, plastic sheets, shower doors and more. The center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the racks.
    • Easy Slide, a low friction material, is mounted to the rails and posts for ease of sliding products in and out.
    • Outside rails have 2" square holes spaced 4" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
    • Note: When assembled the overall usable height of the post is 5.5" less than listed.Example: A 60" post will be 54.5" above the top of the outside rail.
    • Rails shipped with 11" connector tube for butting rails together in a straight line.

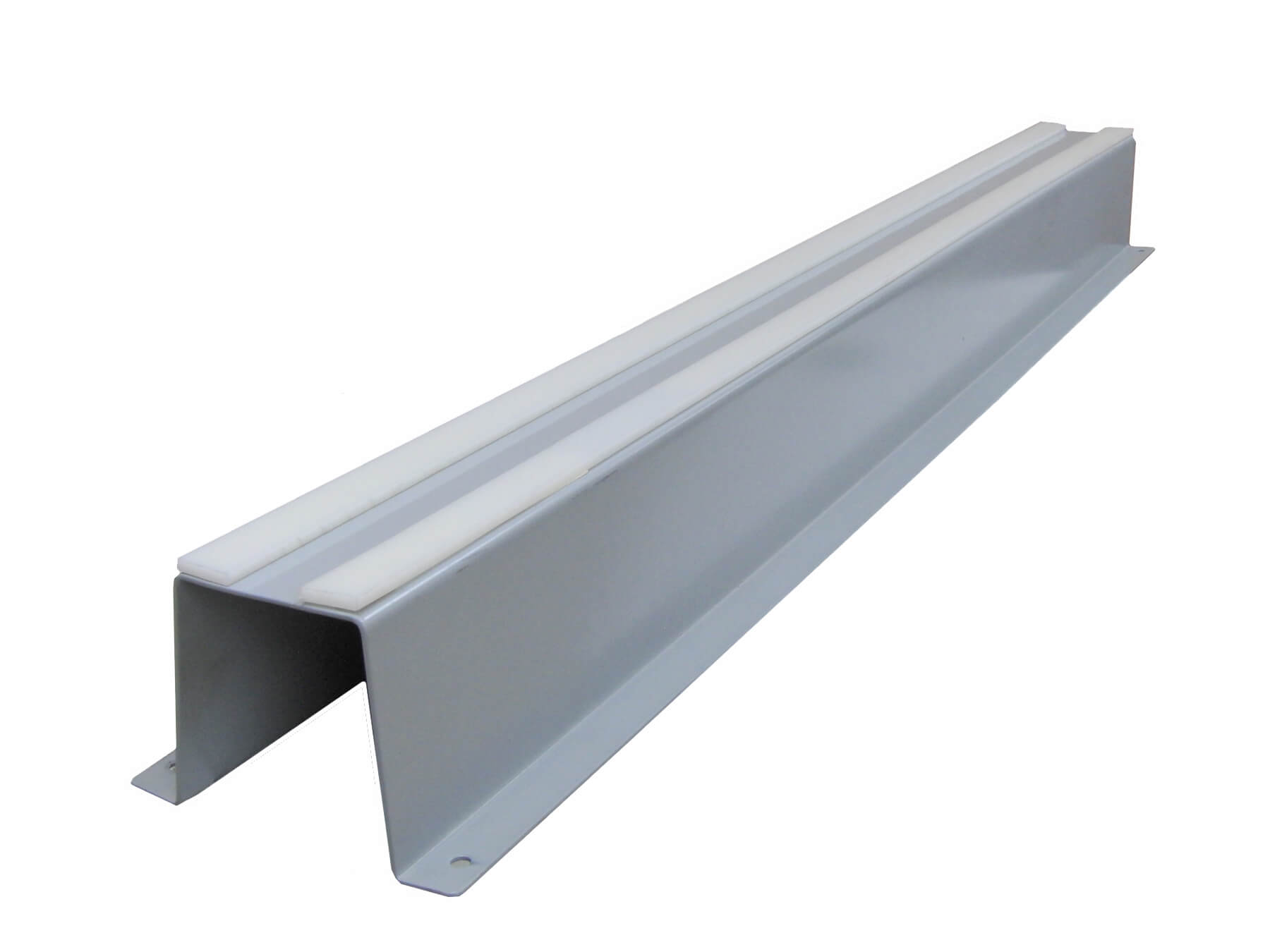

  • Center Rail for Multi-Purpose Storage Rack – CR-5

    Center Rail for Multi-Purpose Storage Rack – CR-5

    • The center rail with easy slide must be used to support the glass when sliding individual pieces in and out of the racks.
    • Easy Slide, a low friction material, is mounted to the rails and posts for ease of sliding products in and out.

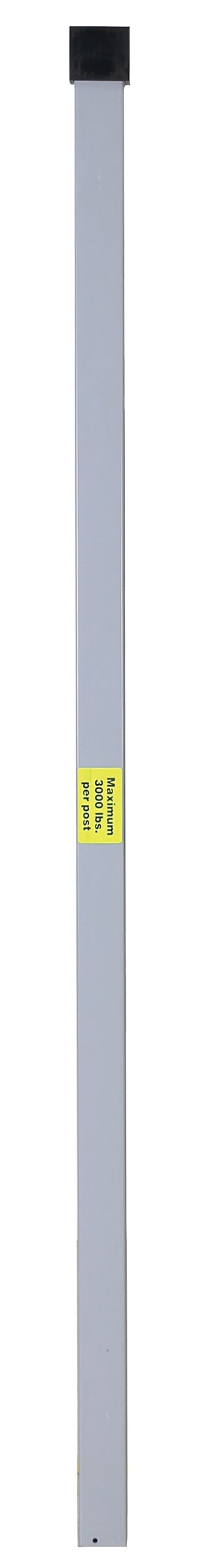

  • 60″ Post for Bundle Rack60″ Post for Bundle Rack

    60″ Post for Bundle Rack

    • For storing smaller fabricated parts and cut-offs
    • Comes complete with 2" x 2" Post Caps
    • 3,000 lb. capacity per post (when using two next to each other the opening is 6,000 lbs.)
    • Heavy-duty powder coated finish
    • NOTE WITH BUNDLE RACK PACKAGES: When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 60” post will be 54.5” above the top of the rail)

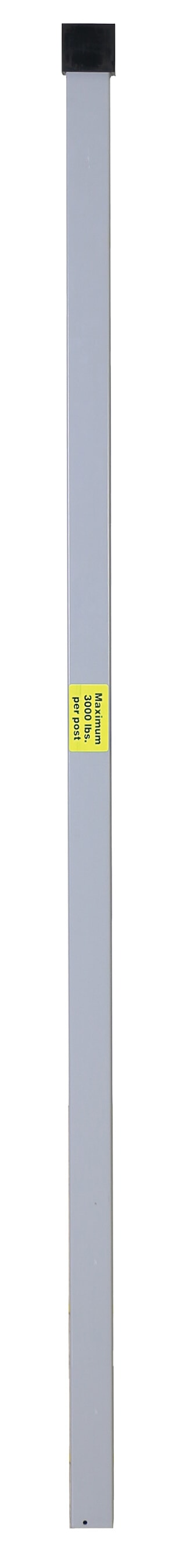

  • 80″ Post for Bundle Rack80″ Post for Bundle Rack

    80″ Post for Bundle Rack

    • For storing smaller fabricated parts and cut-offs
    • Comes complete with 2" x 2" Post Caps
    • 3,000 lb. capacity per post (when using two next to each other the opening is 6,000 lbs.)
    • Heavy-duty powder coated finish
    • NOTE WITH BUNDLE RACK PACKAGES: When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 80” post will be 74.5” above the top of the rail)

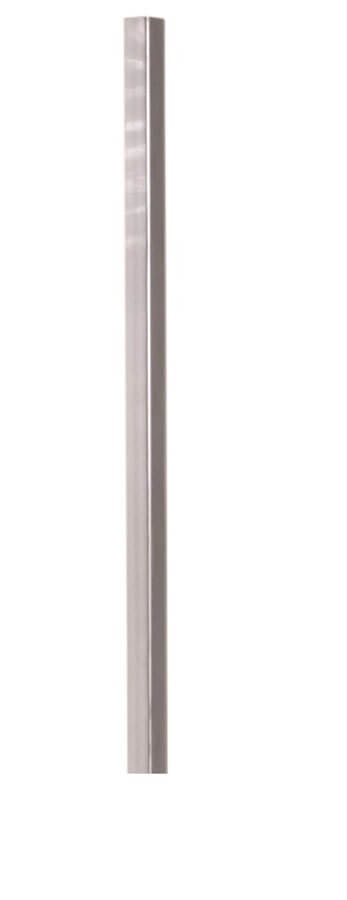

  • 60″ Post with Optional Easy Slide – SP-60ES

    60″ Post with Optional Easy Slide – SP-60ES

    • 60" posts for storing smaller fabricated parts and cut-offs
    • 2" square tube posts are used to prevent scratches.
    • Easy Slide, a low friction material, is mounted to the rails and posts for ease of sliding products in and out.
    • Note: When assembled the overall usable height of the post is 5.5" less than listed.Example: A 40" post will be 34.5" above the top of the outside rail.

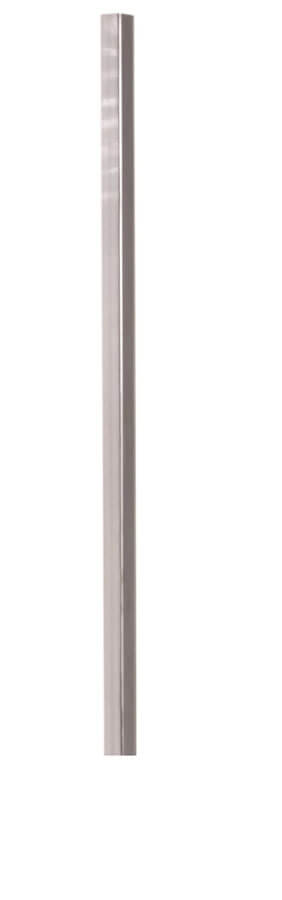

  • 80″ Post with Optional Easy Slide – SP80ES

    80″ Post with Optional Easy Slide – SP80ES

    • 80" posts for storing smaller fabricated parts and cut-offs
    • 2" square tube posts are used to prevent scratches.
    • Easy Slide, a low friction material, is mounted to the rails and posts for ease of sliding products in and out.
    • Note: When assembled the overall usable height of the post is 5.5" less than listed.Example: A 40" post will be 34.5" above the top of the outside rail.
  • Placeholder

    102″ Post with Optional Easy Slide – SP-102ES

    • 102" posts for storing smaller fabricated parts and cut-offs
    • 2" square tube posts are used to prevent scratches.
    • Easy Slide, a low friction material, is mounted to the rails and posts for ease of sliding products in and out.
    • Note: When assembled the overall usable height of the post is 5.5" less than listed.Example: A 40" post will be 34.5" above the top of the outside rail.
