THE BEST SOURCE OF GLASS AND STONE STORAGE & HANDLING SYSTEMS

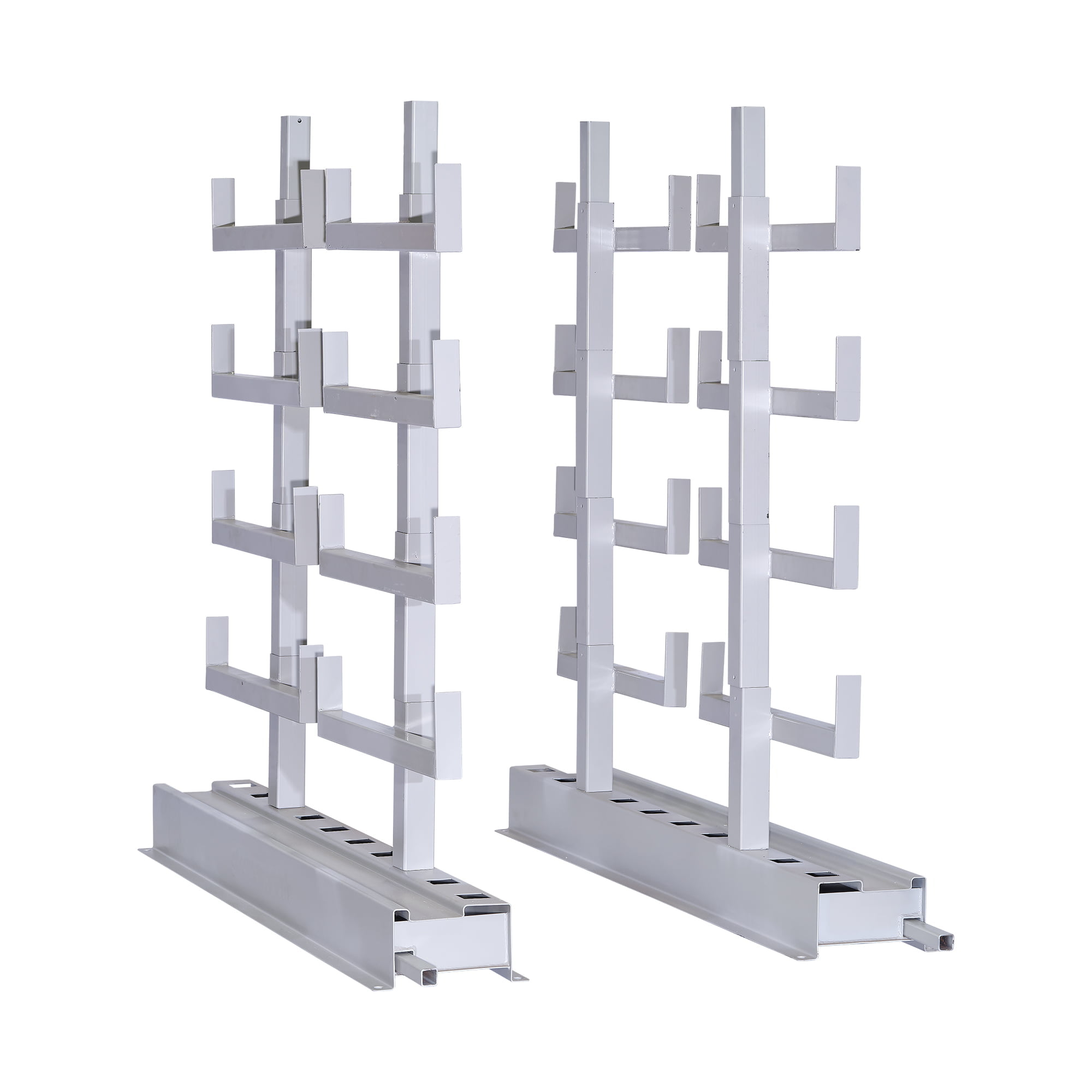

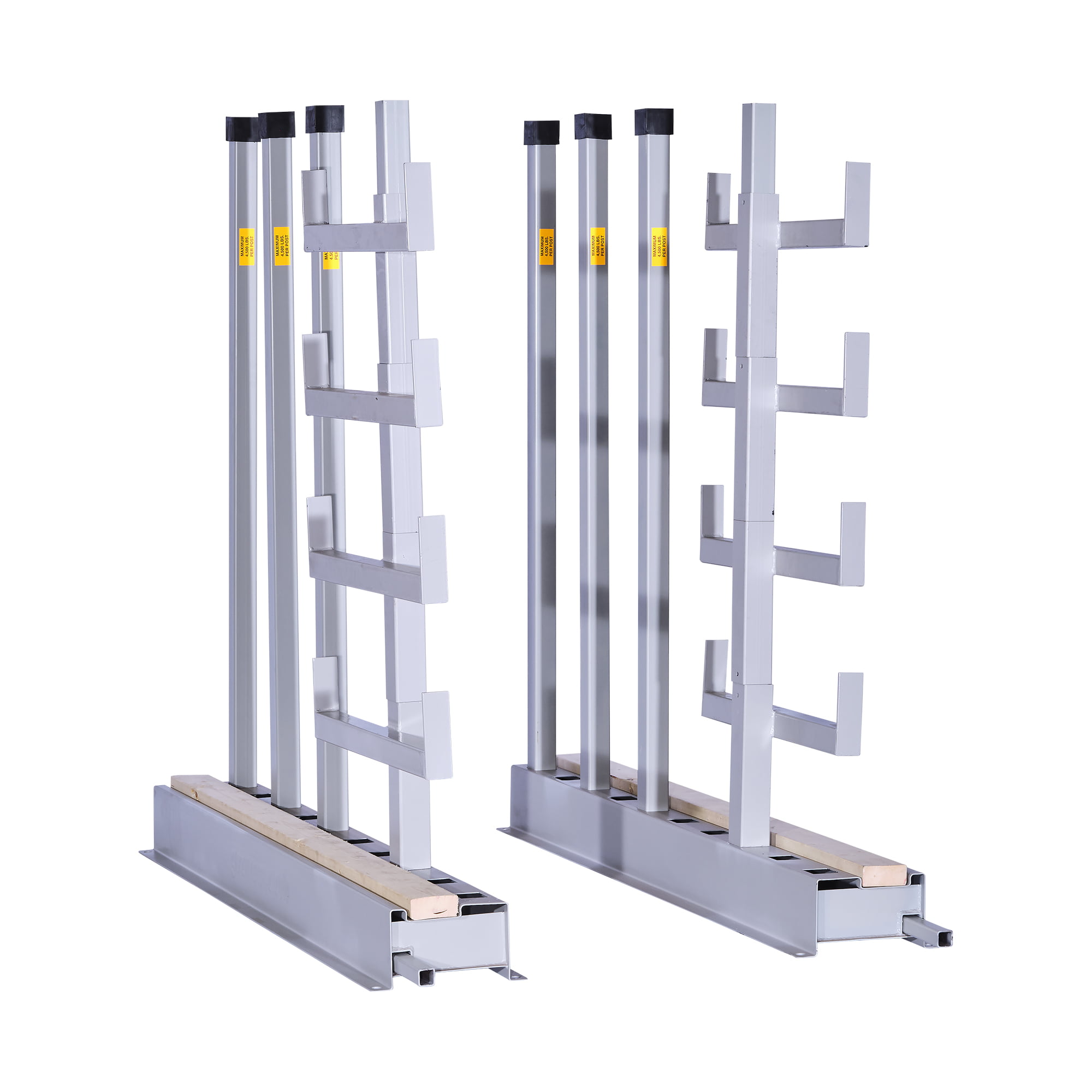

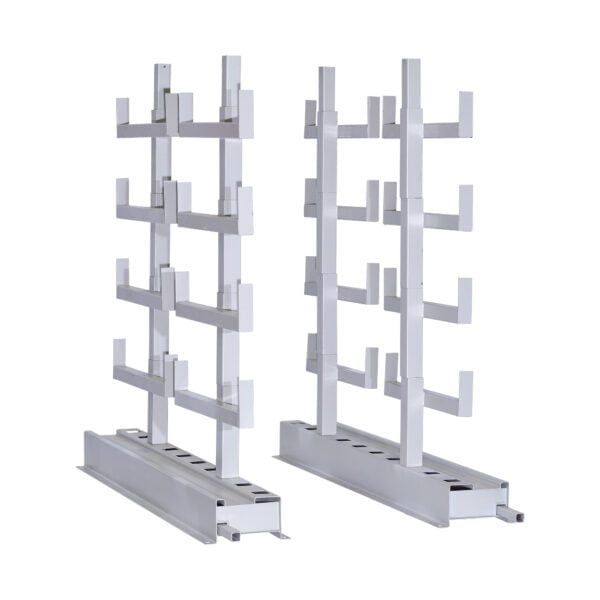

Backsplash Packages

$0.00

Designed to store large quantities of backsplash in a small area, or a combination of slabs and backsplash on one rack.

SKU: BSBPKG
  • Heavy-duty powder coated rails are 60" long x 11" wide x 5½" high and butt together for desired length.
  • Rails ship with 11" connector tube for butting rails together in a straight line.
  • Outside rails have 2" square holes spaced 4" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
  • Note: When assembled the overall usable height of the post is 5½" less than listed. Example: A 60" post will be 54½" above the top of the outside rail.
  • Special Order. Please call for pricing and lead time.
  • Patent # 7143901
Clear
Categories: , Tag:
Share:

Safely store finished backsplashes in a space saving, convenient, and easily accessible location.

SAFETY WARNING:

  • Use ½" holes located on the bottom flange for securing rails to the floor

  • Maximum weight capacity for slab storage is 9,000 lbs. between two posts (4,500 lbs. per post)

  • Maximum weight capacity for backsplash storage is 500 lbs. per section evenly distributed

  • When assembled, the overall usable height of the post is 5½" less than listed

Weight N/A
