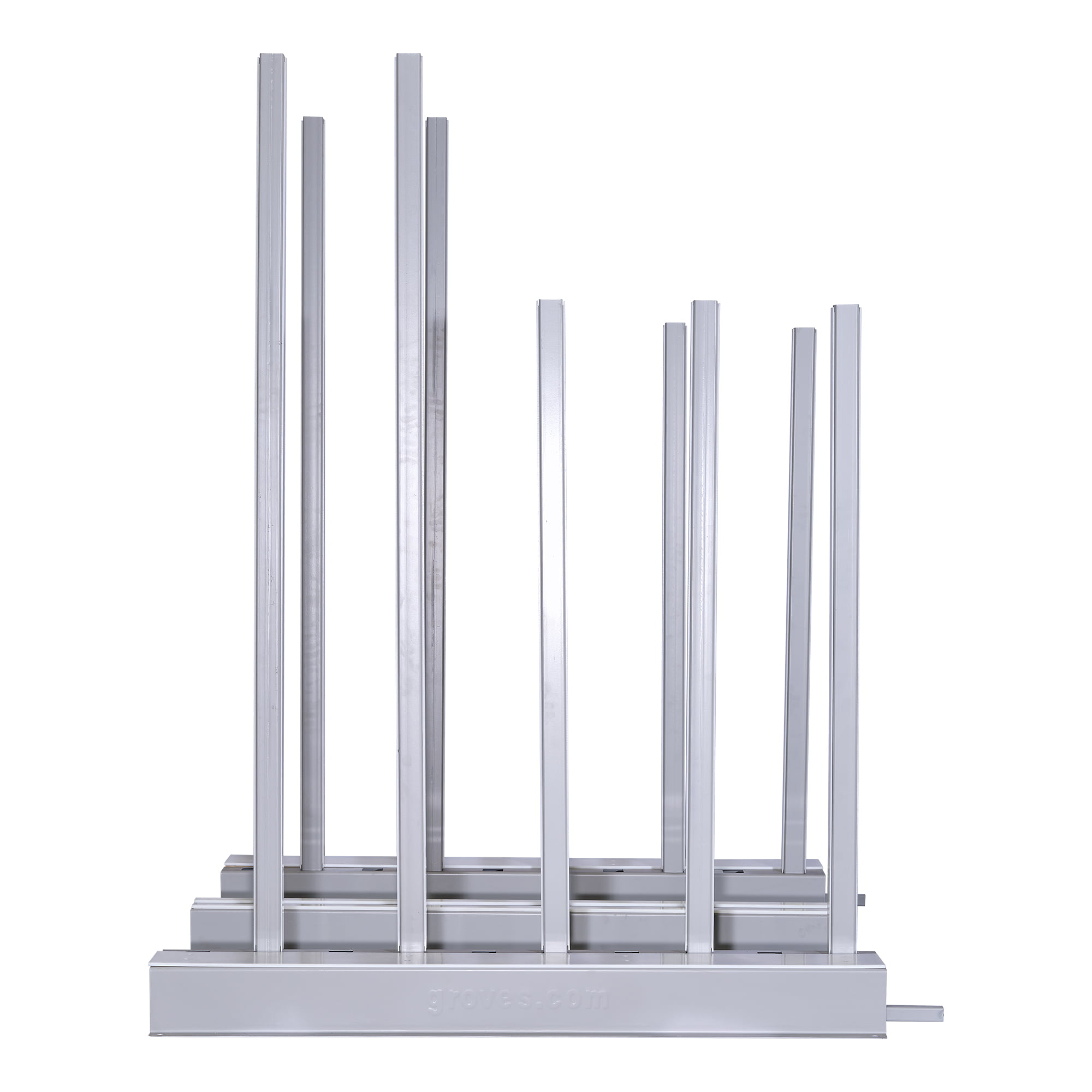

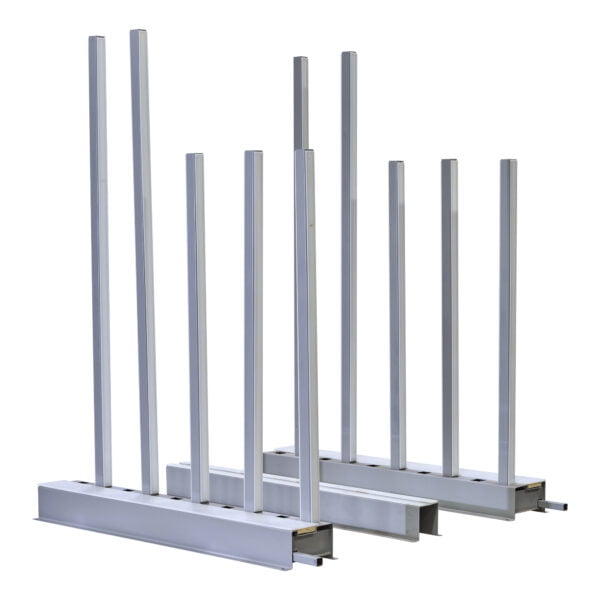

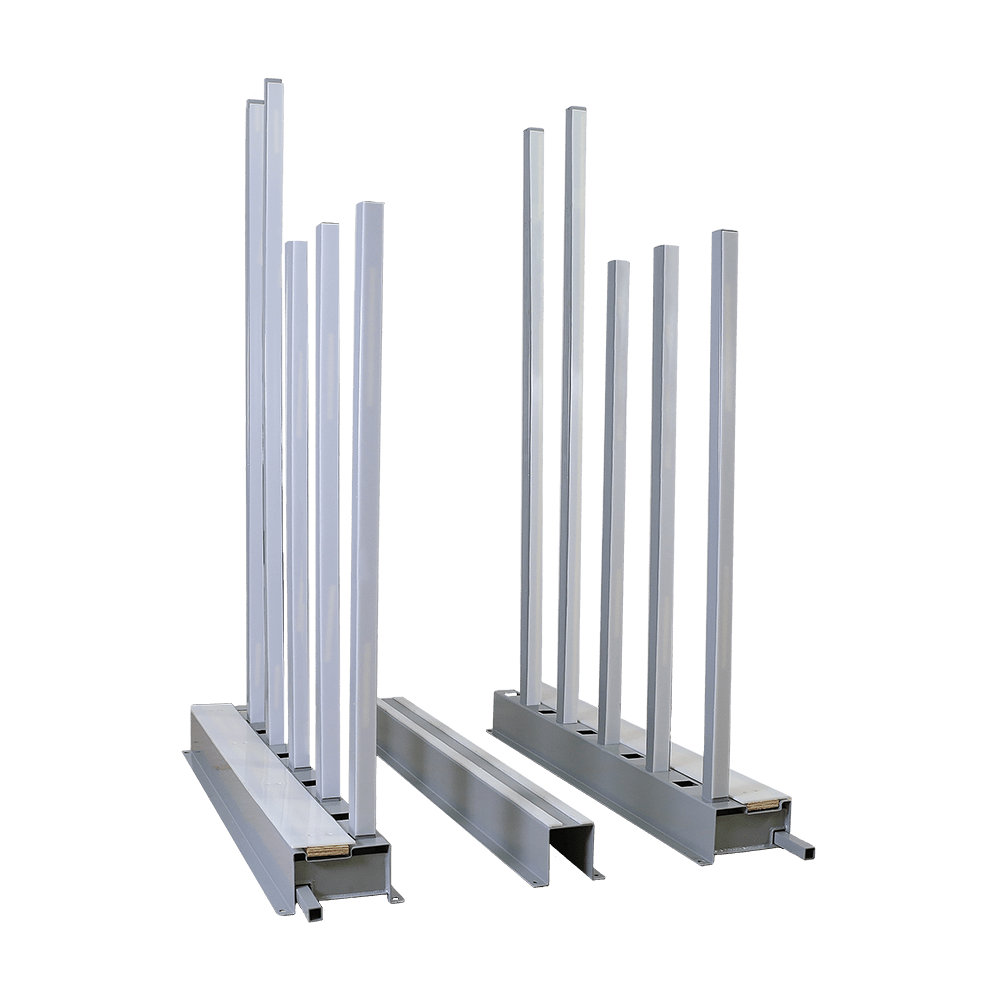

Multi-Purpose Glass Storage System – 9,000 lbs.

SKU: Multi-Purpose Rack Dimensions: Rail Size: 11” x 5.5” x 60” | Center Rail Size: 4.5” (7.25” with flange) x 5.75”
  • Heavy-duty powder coted finish
  • Rails designed with slots to hold 2 x 4’s which protect the stored product and the finish on the rails (2 x 4s not included). Optional Easy Slide (made of low friction material) can be mounted to the 2 x 4’s for extra protection
  • Center rail with easy slide must be used to support the glass when sliding individual lites in and out of the rack
  • Outside rails built with 2" square holes spaced 4" apart. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom
  • 2" square tube posts and 2" square rubber post caps to separate glass
  • Complete with 11" connector tube for butting rails together in a straight line for desired length
  • Patent # 7143901
Categories: , Tag:
Share:

Store wood crates or stoce packs with ease!

Suggested wood-case packages
Part No. Length Openings Parts In Package Weight lbs. Price Each
4pak 5′ 4 2 BR-5, 6 SP-60, 4 SP-80 276 $789.00
9pak 10′ 9 4 BR-5, 10 SP-60, 10 SP-80 560 $1,606.00
19pak 20′ 19 8 BR-5, 16 SP-60, 16 SP-80, 8 SP-102 1,192 $3,444.00
49pak 50′ 49 20 BR-5, 24 SP-60, 36 SP-80, 40 SP-102 3,184 $9,274.00
Suggested easy-slide packages for glass packs and wood cases
Part No. Length Openings Parts In Package Weight lbs. Price Each

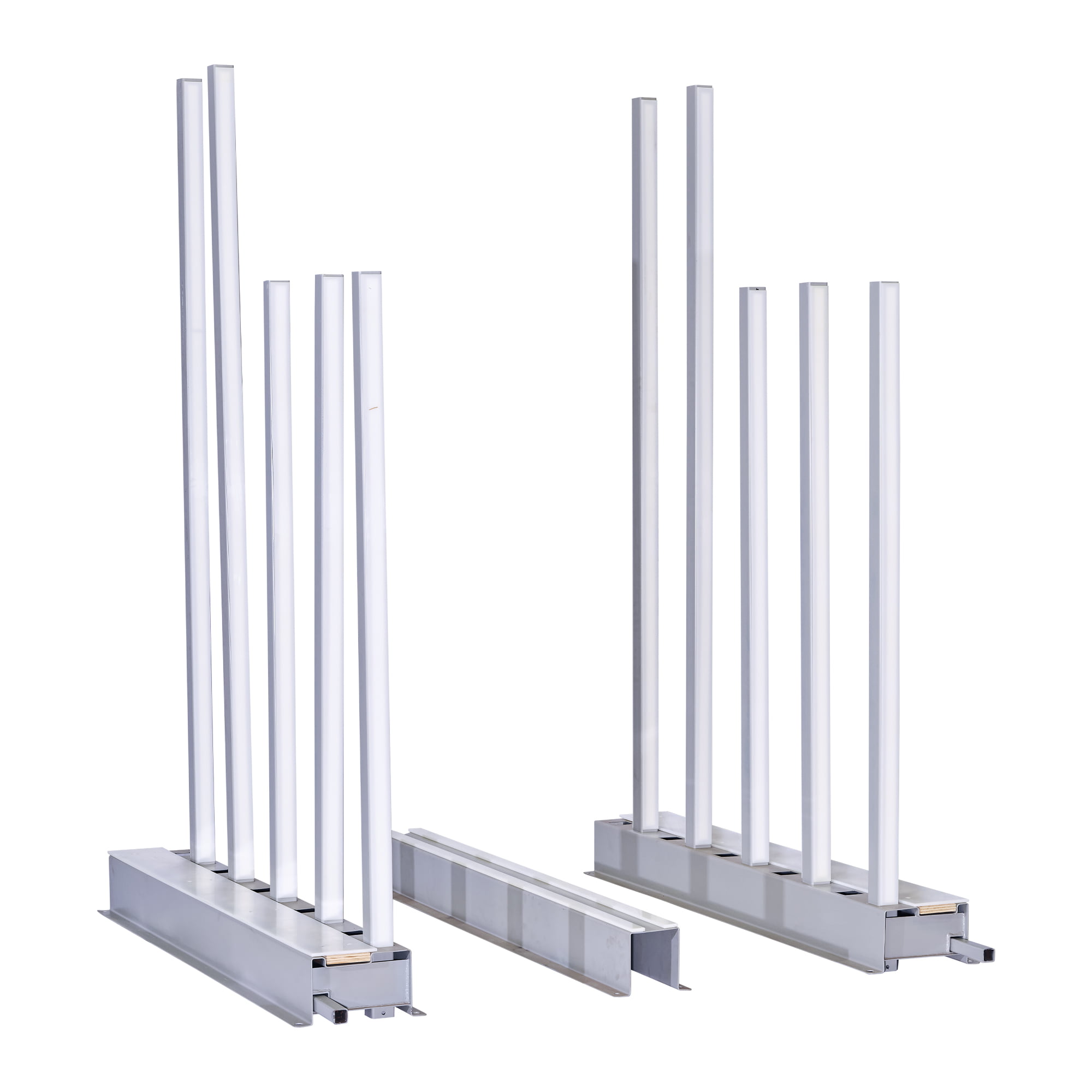

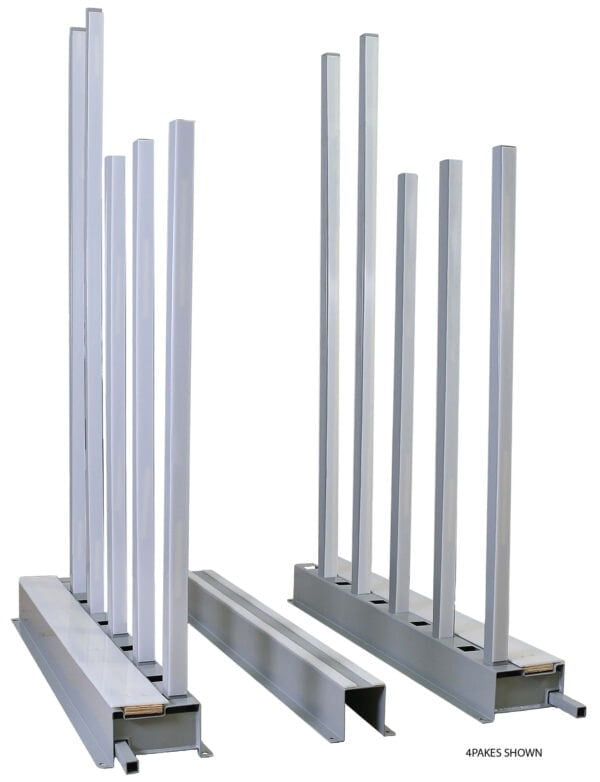

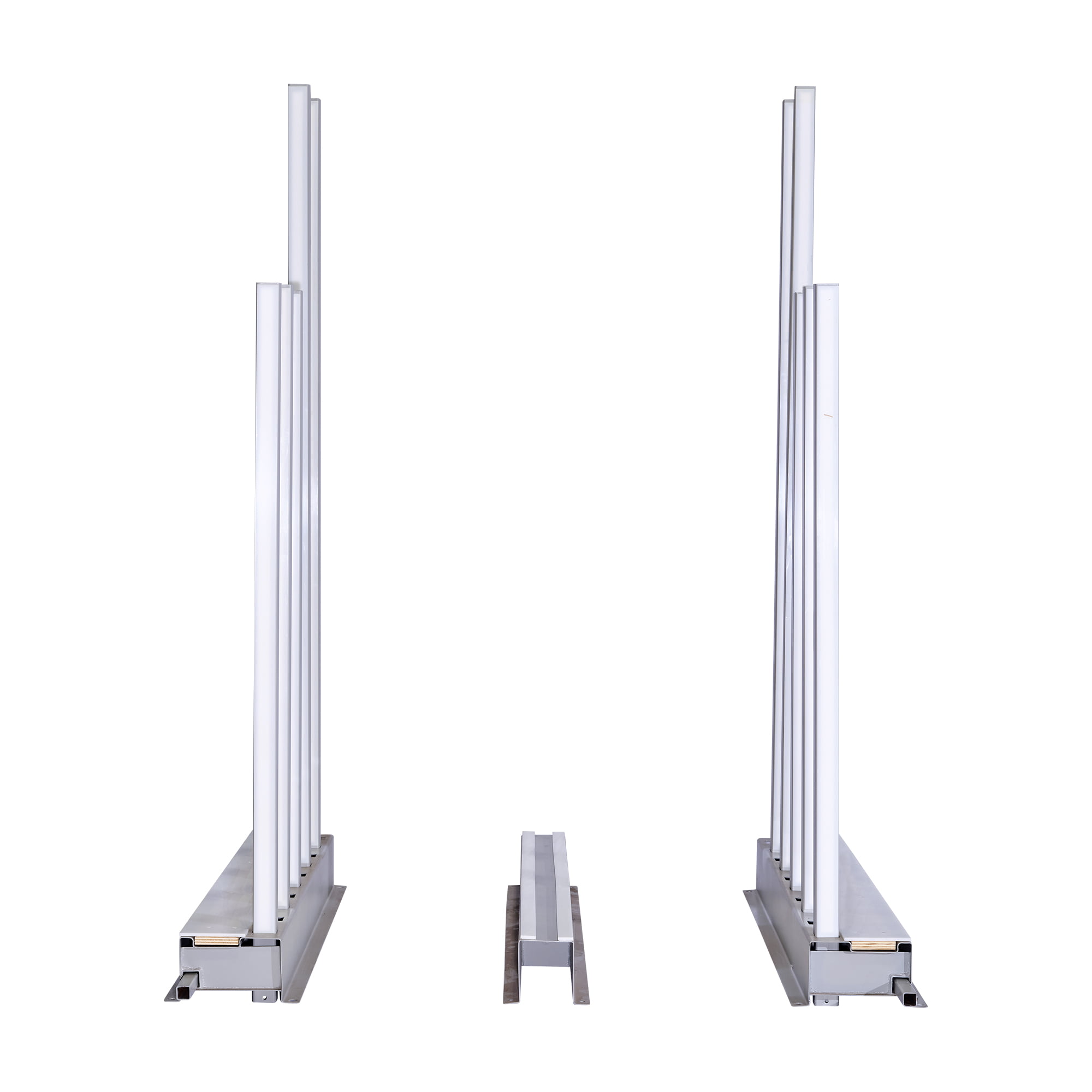

4pakES 5′ 4 2 BR-5ES, 1 CR-5ES, 6 SP-60ES, 4 SP-80ES 326 $1,163.00
9pakES 10′ 9 4 BR-5ES, 2 CR-5ES, 10 SP-60ES, 10 SP-80ES 660 $2,367.00
19pakES 20′ 19 8 BR-5ES, 4 CR-5ES, 16 SP-60ES, 16 SP-80ES, 8 SP-102ES 1,400 $5,025.00
49pakES 50′ 49 20 BR-5ES, 10 CR-5ES, 24 SP-60ES, 36 SP-80ES, 40 SP-102ES 4,125 $13,412.00

General Use and Safety Guidelines (PDF)

Assembly Instructions

SAFETY WARNINGS:

  • Use .5″ holes located on bottom flange for securing rails to the floor

  • Maximum weight allowed per opening is 9,000 lbs. (4,500 lbs. per post)

  • Minimum of 2-degree angle when dropping stone in between posts

  • When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 60” post will be 54.5” above the top of the outside rail)
