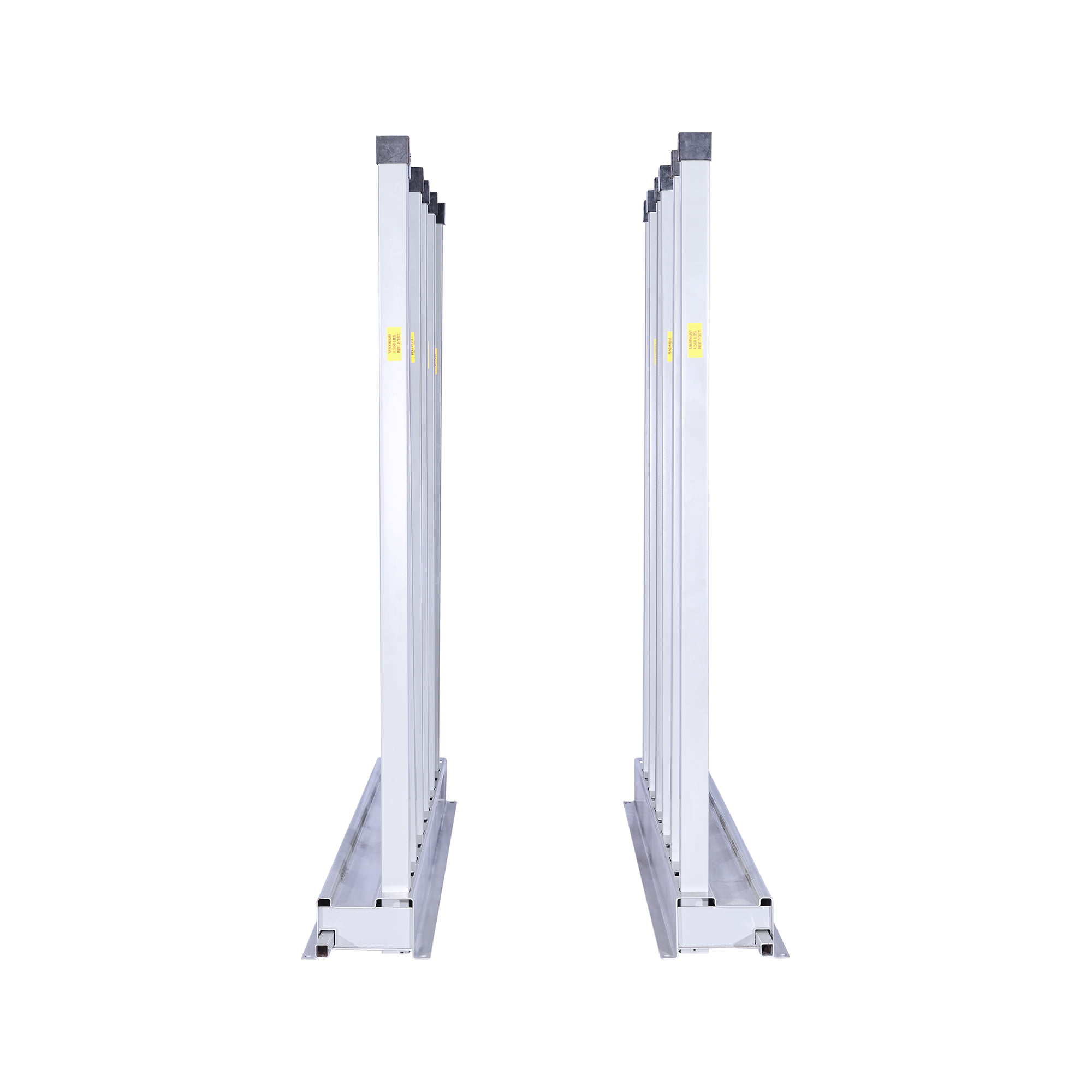

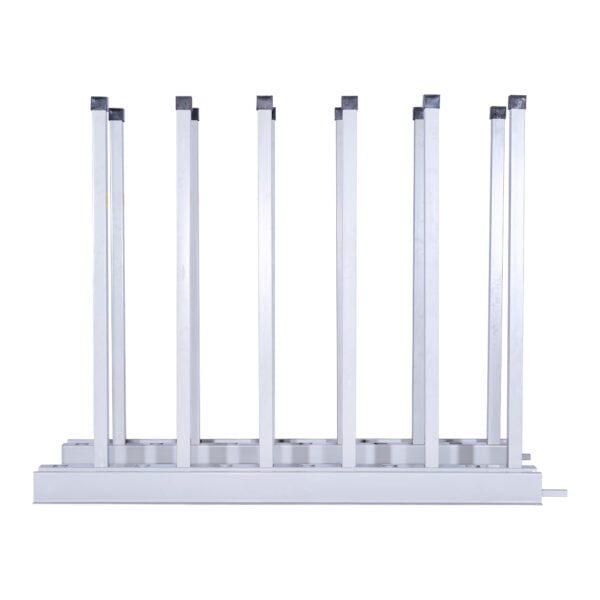

Heavy-Duty Bundle Rack – Long

SKU: Heavy Duty Bundle Rack Long
  • Heavy-duty powder coated finish

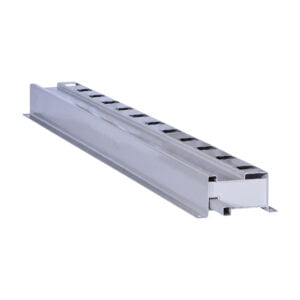

  • Rails built with 2.5" square holes spaced 5" apart. A steal plate with identical holes is welded and boxed inside the rail, 1" up from the bottom

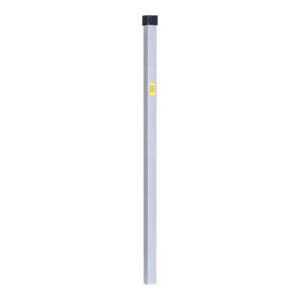

  • 2.5" square tubes posts and 2.5" square rubber post caps to separate bundles and slabs
  • Must have a 12” overhang on each side

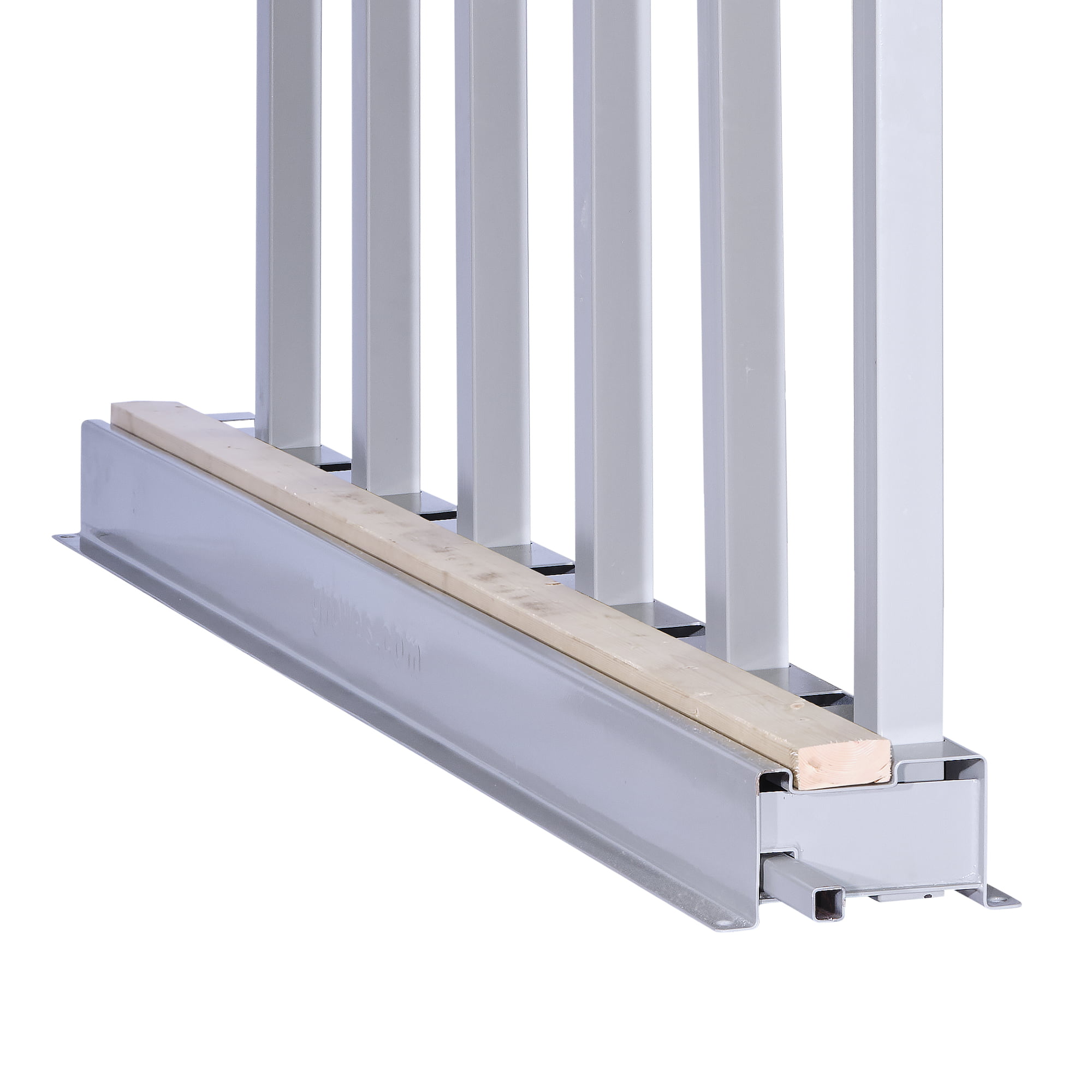

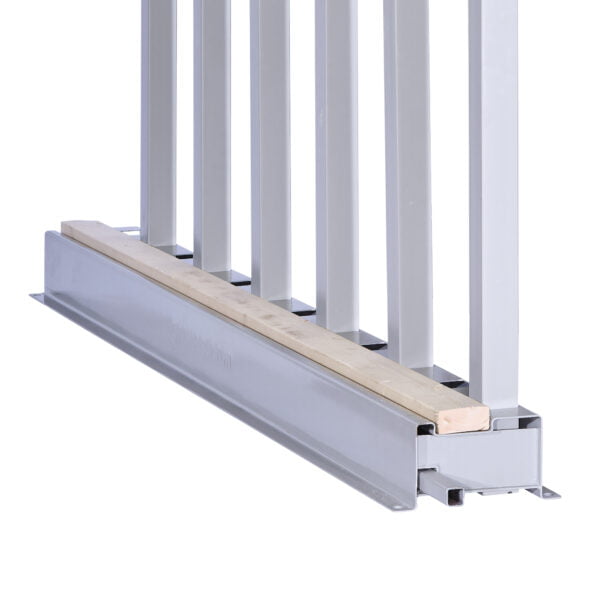

  • 90" Rails are designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4s not included)
  • Complete with 11" connector tube for butting rails together in a straight line for desired length
  • PATENT #: 7143901
Categories: , Tag:
Share:

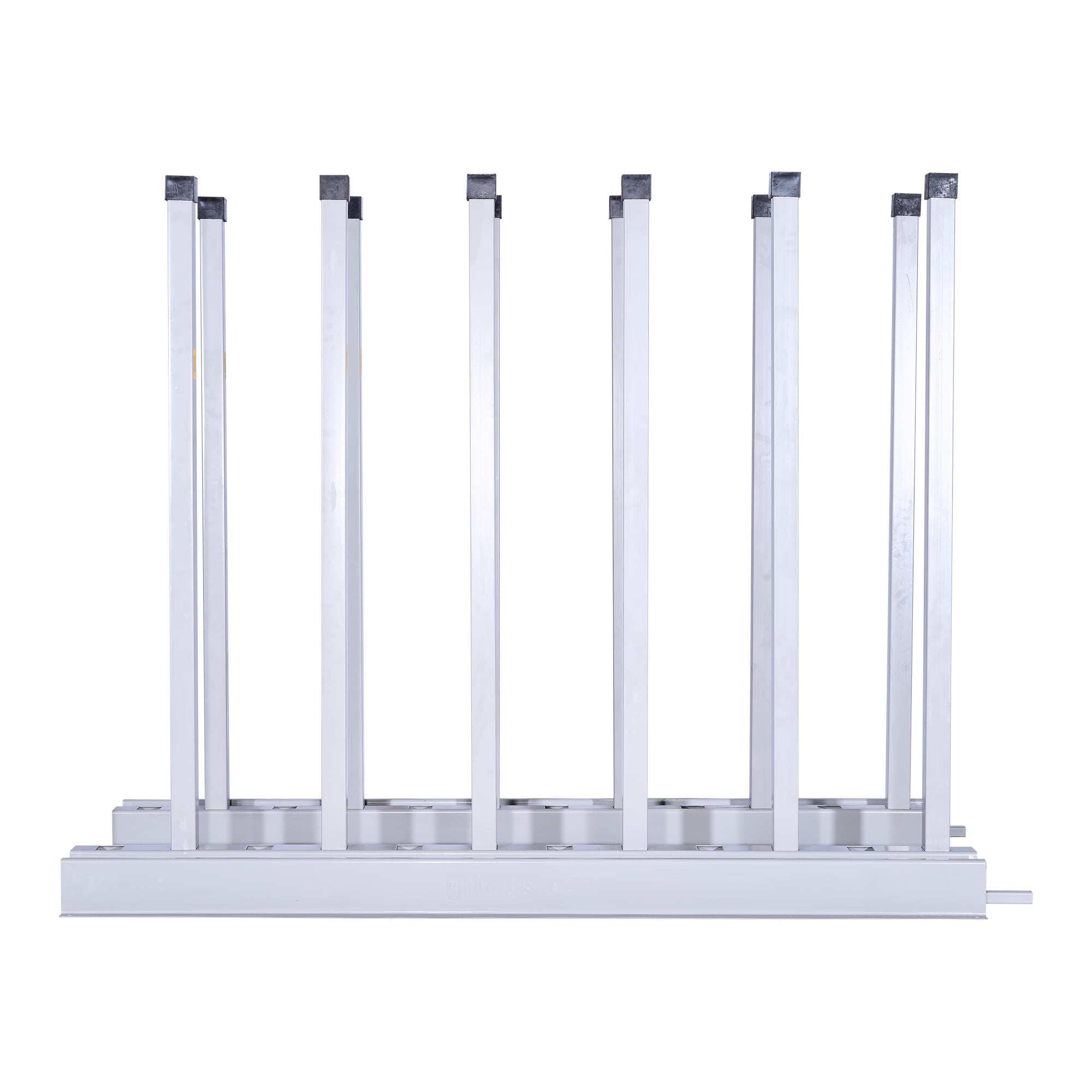

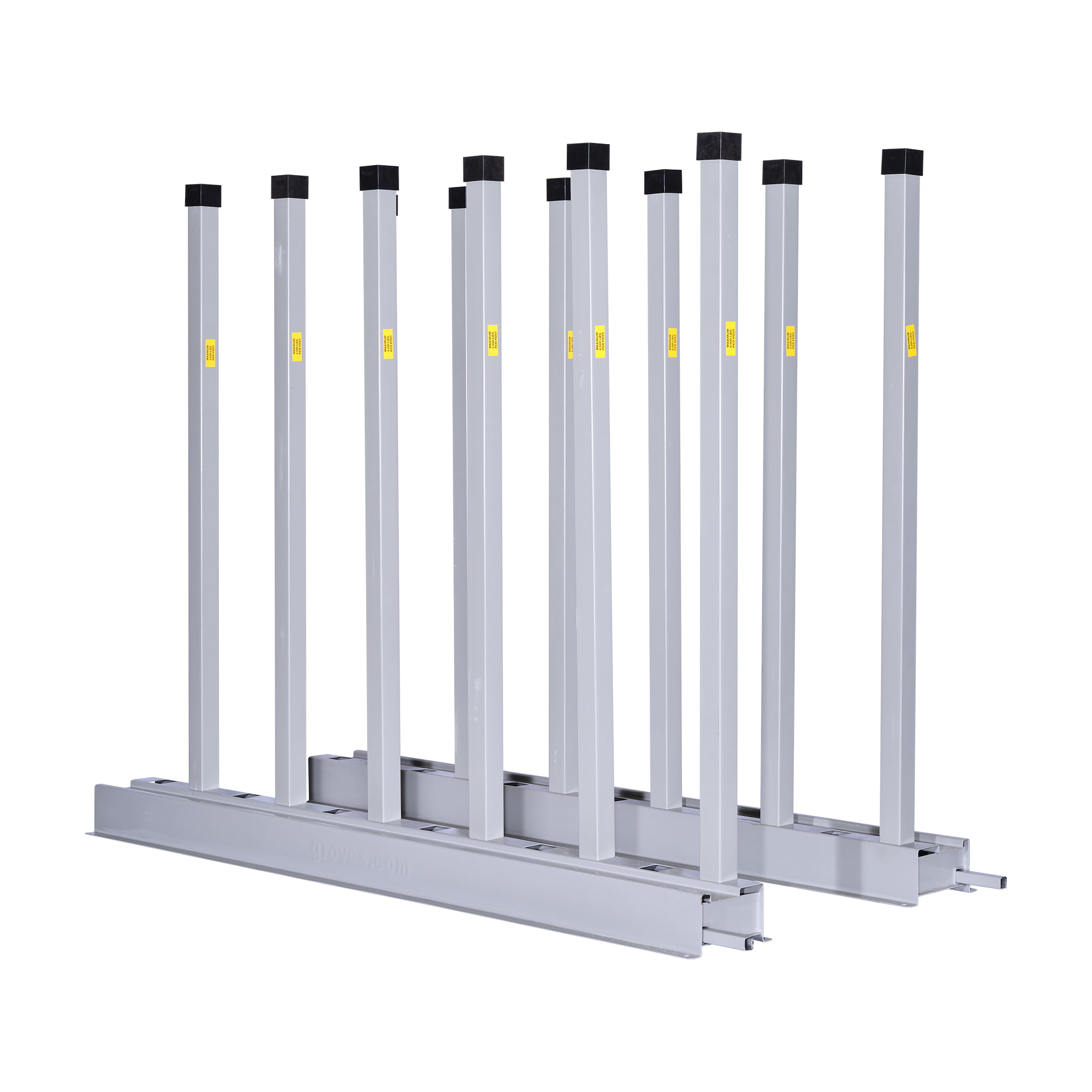

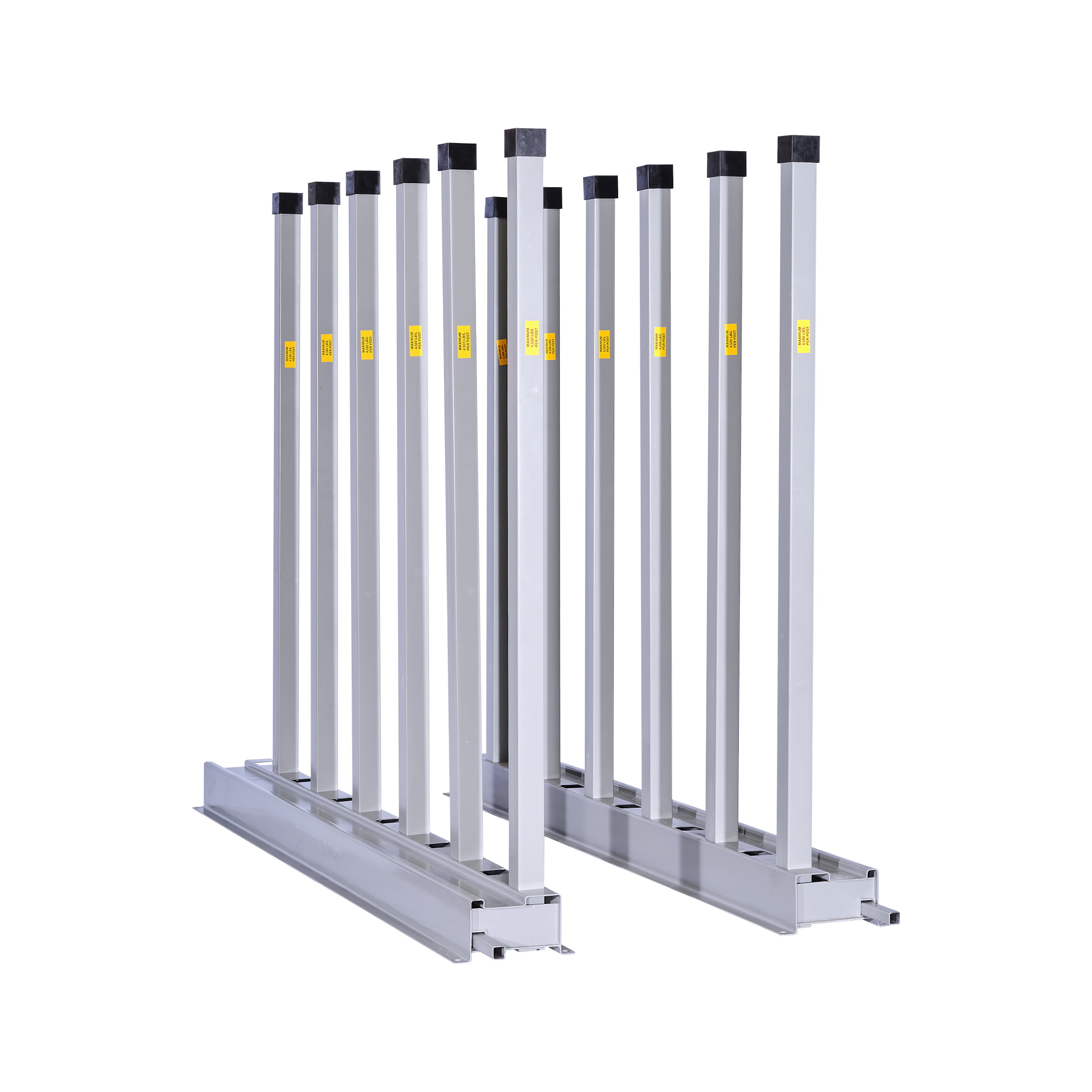

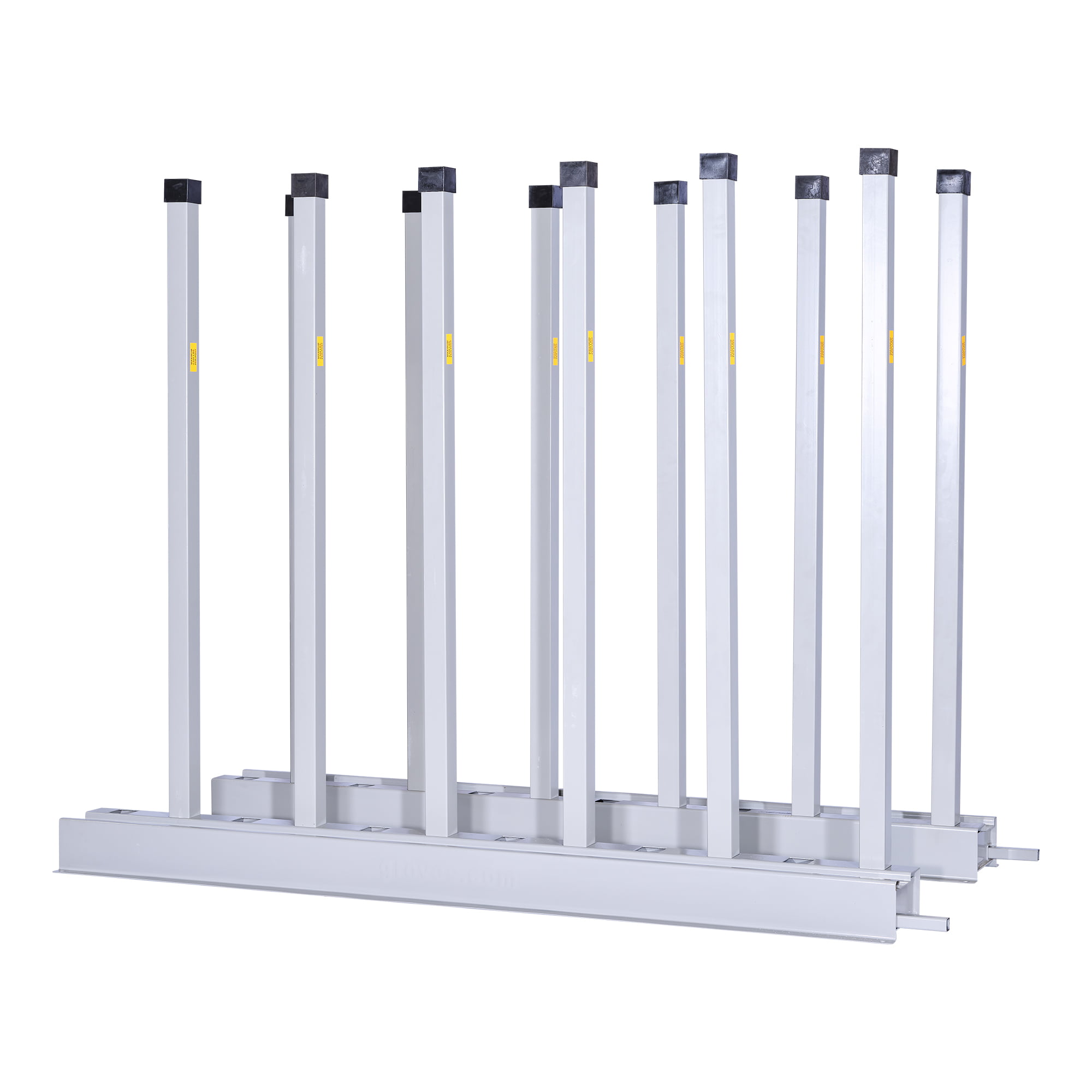

The Heavy-Duty Bundle Rack is designed to utilize its 90″ rails for jumbo size stone bundles!

SUGGESTED PACKAGES FOR HEAVY DUTY BUNDLE RACK – LONG
Part No. Length Openings Parts In Package Weight lbs. Price Each
5-H7290 7.5′ 5 2 BR2.5-90, 12 SP-72 558 $1,592.00
11-H7290 15’ 11 4 BR2.5-90, 24 SP-72 1,116 $3,184.00
23-H7290 30’ 23 8 BR2.5-90, 48 SP-72 2,232 $6,368.00
35-H7290 45’ 35 12 BR2.5-90, 72 SP-72 3,348 $9,552.00
47-H7290 60’ 47 16 BR2.5-90, 96 SP-72 4,464 $12,736.00
59-H7290 75’ 59 20 BR2.5-90, 120 SP-72 5,840 $15,920.00

General Use & Safety Guidelines

Bundle Rack Assembly Instructions

SAFETY WARNINGS:

  • Use .5″ holes located on bottom flange for securing rails to the floor

  • Maximum weight allowed per opening is 9,000 lbs. (4,500 lb. per post)

  • Minimum of 2-degree angle when dropping stone in between posts

  • When assembled the overall height of the posts are 5.5” less then listed (EXAMPLE: 72” post will be 66.5” above the top of the rail)
